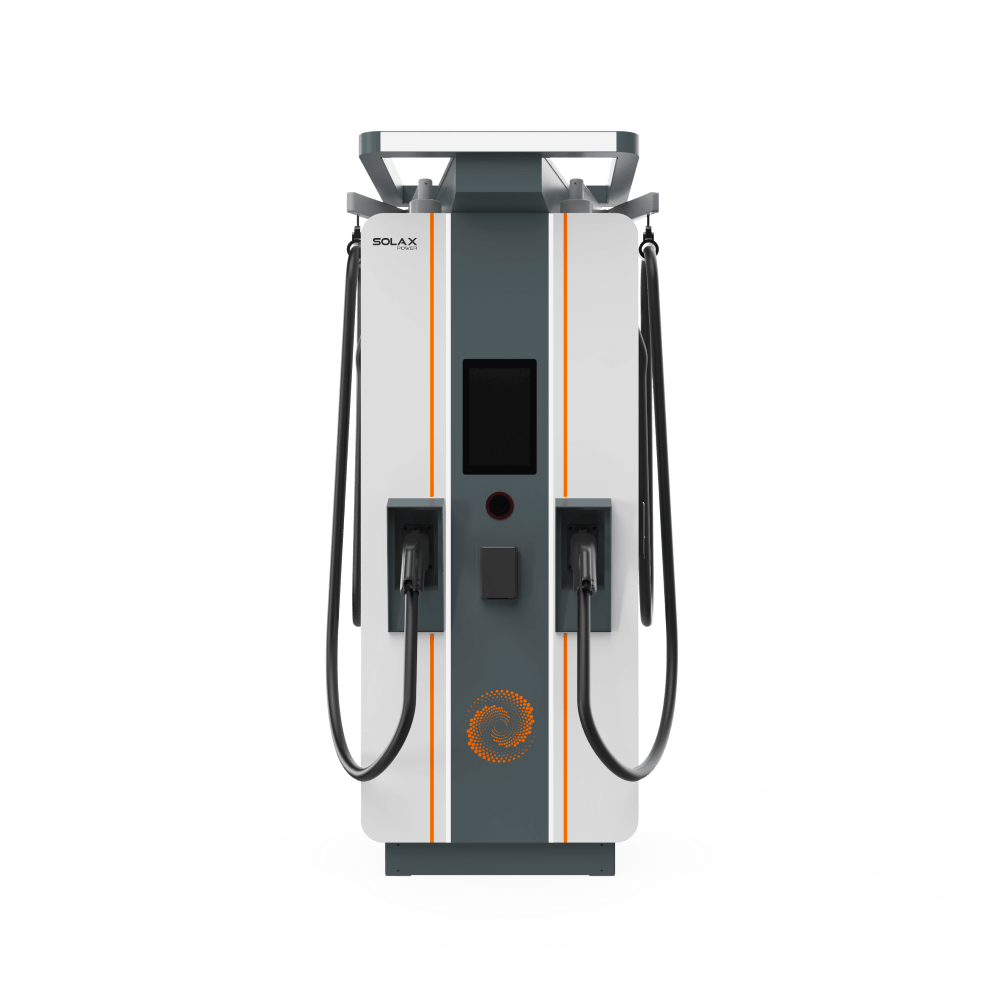

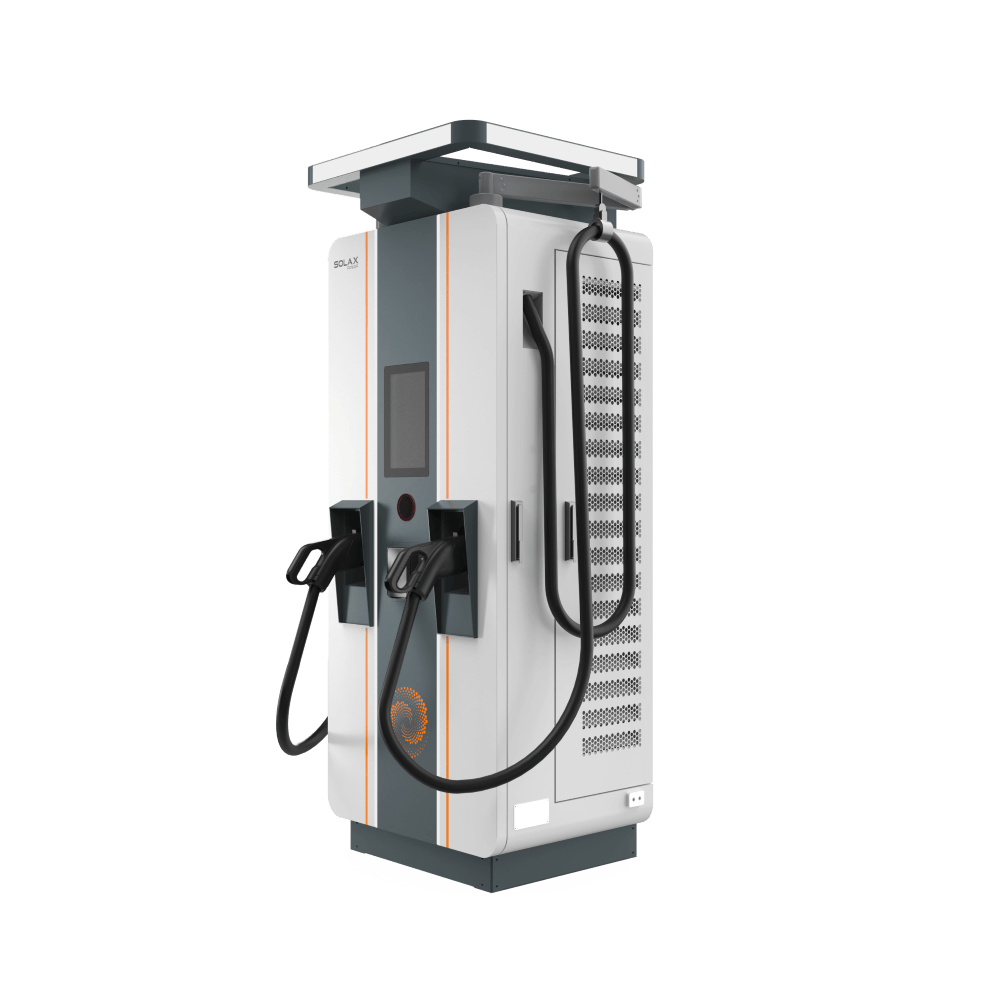

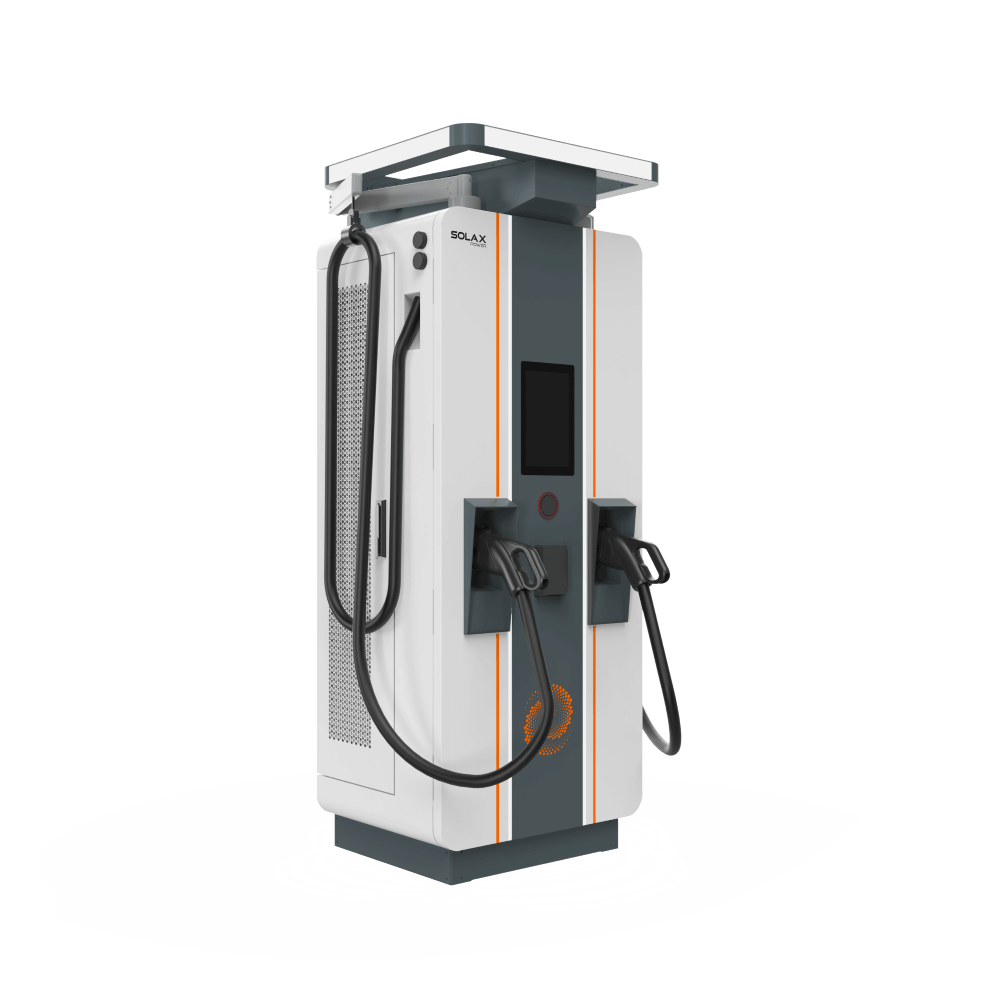

C&I EV Charger
Fast DC Charger
-
120kW/180kW/240kW/300kW/360kW
This fast DC charger features an all-in-one structure with flexible installation options, making ideal for a wide range of applications. The 12.1-inch high-contrast HMl display enhances user experience, and ensures seamless integration and easy operation.
Product Advantage
By combining dynamic EMS power control with a full PV-ESS-EV solution, this charger inteligently balances energy usage, minimizes peak load impact, and adapts to real-time EV demand.
Supporting a wide voltage range (200-1000V), it maximizes green energy use, and reduces energy costs-making it the ideal choice for sustainable charging infrastructures.
Flexible Adaptability
Selectable plug or socket outlet
Easy indoor and outdoor installation
High Efficiency
Capable of 100% green energy
Maximizes surplus green energy utilization in a zero-export system
Assured Safety
Current leakage protection (30mA AC & 6mA DC)
Smart dynamic load balance control
Intelligent Design
Smart RFID management function
Smart APP remote control
Product Parameters
-
FDC-120-EU-
AC NOMINAL INPUT
Voltage 380 V ± 15 % Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 120 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Application site Indoor / Outdoor Net weight 320 kg Dimensions (W x H x D) 720 × 2000 × 600 mm
-
-
FDC-180-EU
-
AC NOMINAL INPUT
Voltage 380 V ± 15 % Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 180 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Application site Indoor / Outdoor Net weight 450 kg Dimensions (W x H x D) 890 × 2100 × 700 mm
-
-
FDC-240-EU
-
AC NOMINAL INPUT
Voltage 380 V ± 15 % Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 240 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Application site Indoor / Outdoor Net weight 480 kg Dimensions (W x H x D) 890 × 2100 × 700 mm
-
-
FDC-300-EU
-
AC NOMINAL INPUT
Voltage 380 V ± 15 % Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 300 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Application site Indoor / Outdoor Net weight 660 kg Dimensions (W x H x D) 1066 × 2108 × 832 mm
-
-
FDC-360-EU
-
AC NOMINAL INPUT
Voltage
380 V ± 15 %
Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 360 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Application site Indoor / Outdoor Net weight 690 kg Dimensions (W x H x D) 1066 × 2108 × 840 mm
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
