Residential Batteries

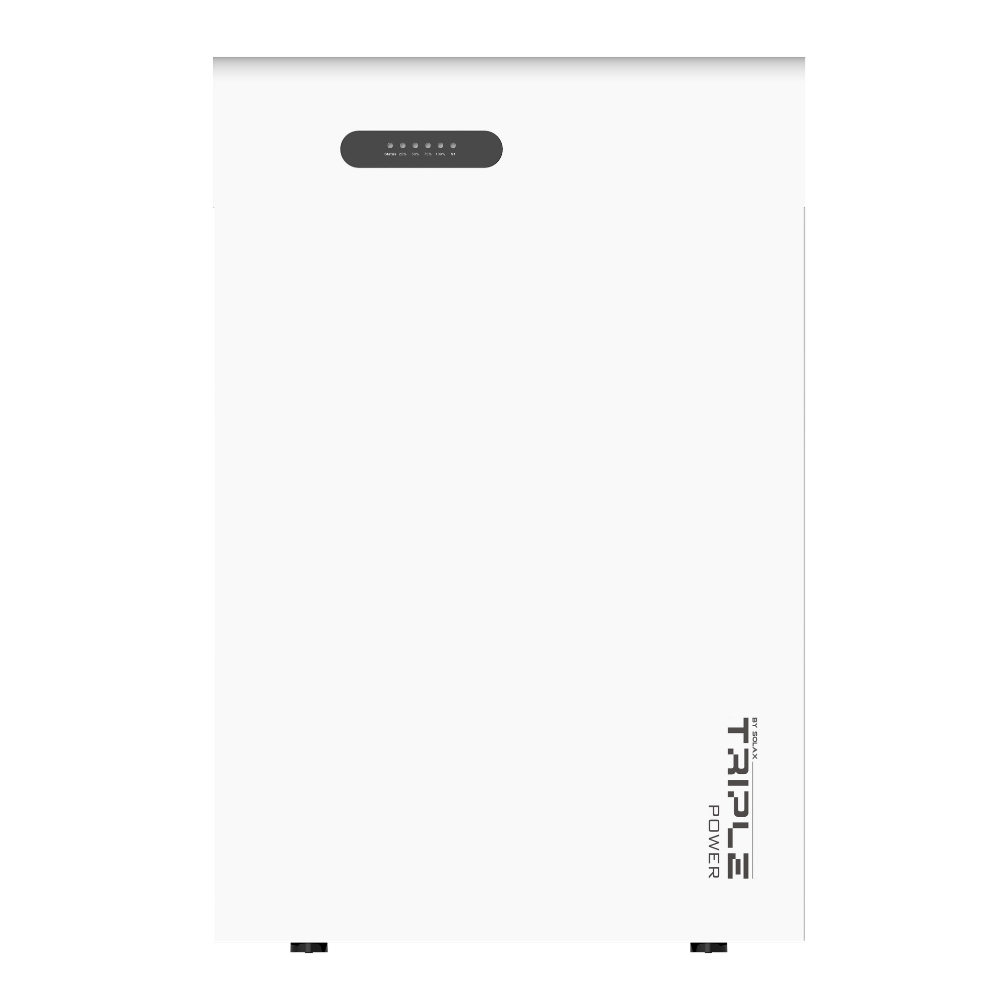

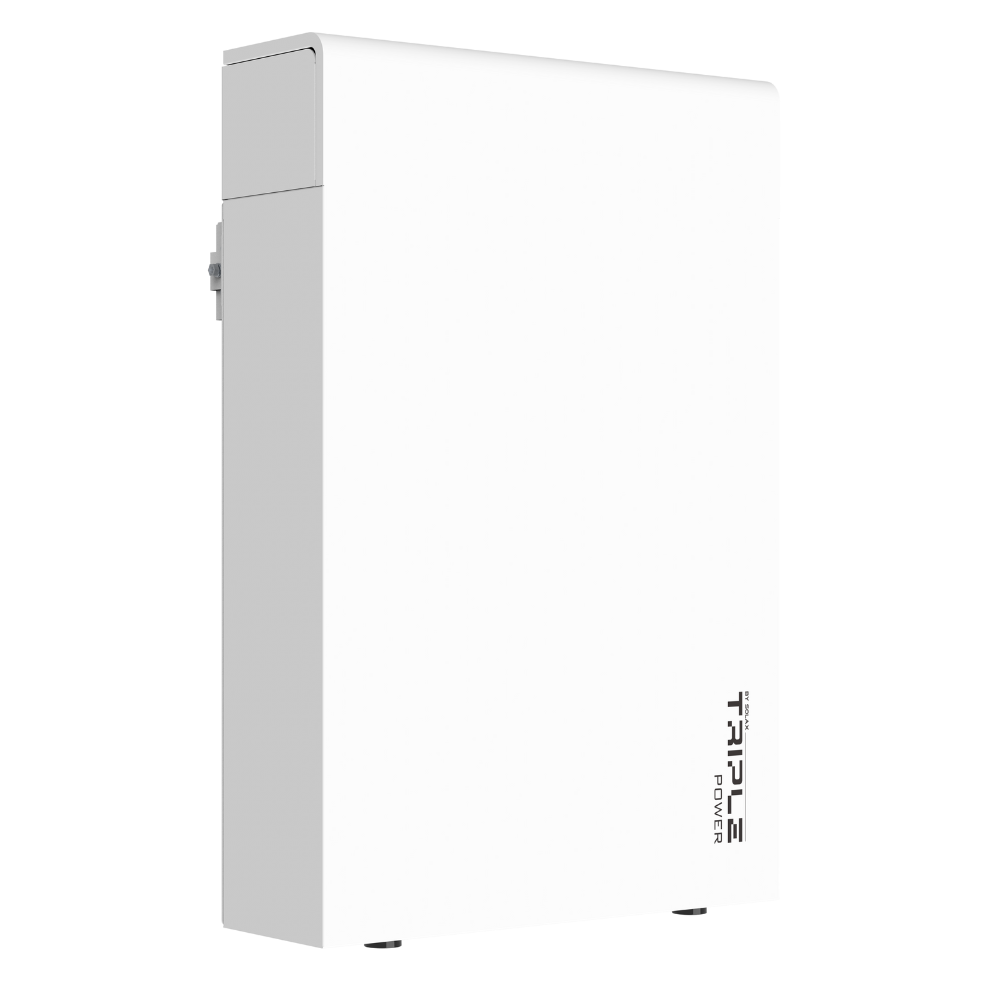

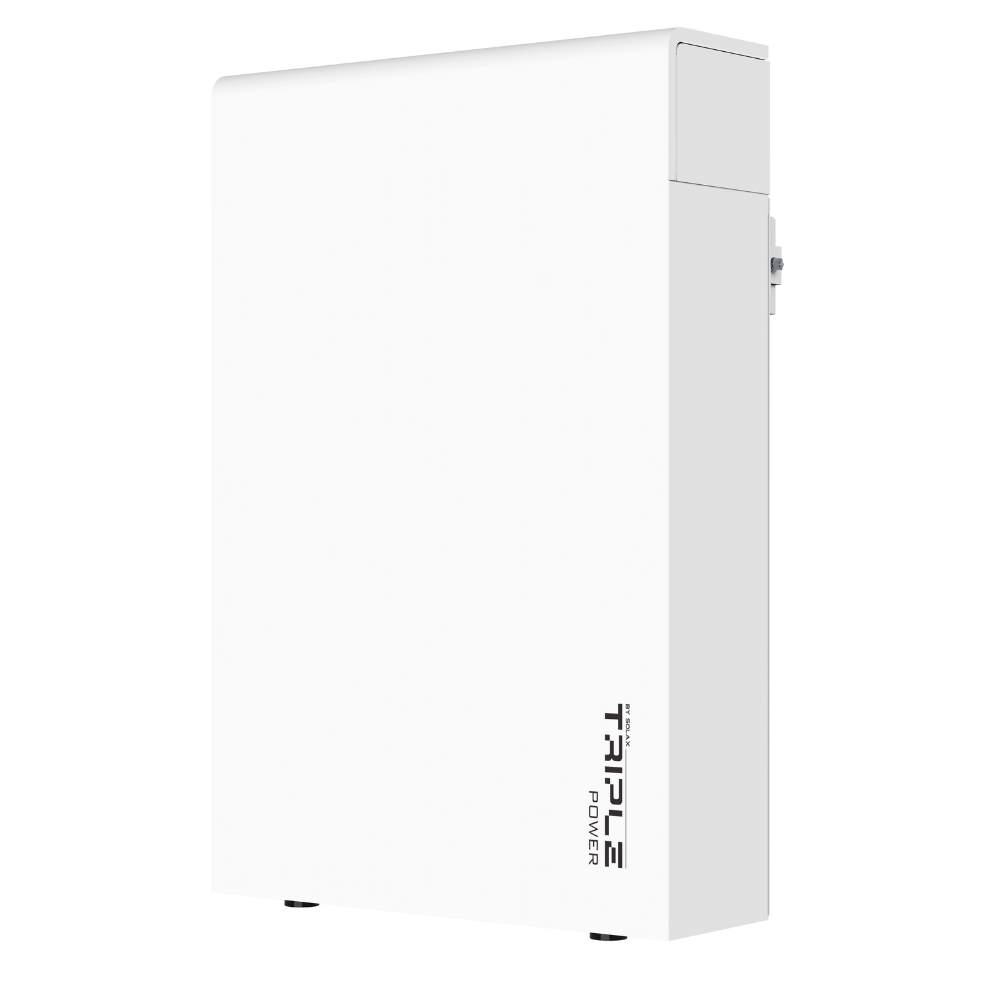

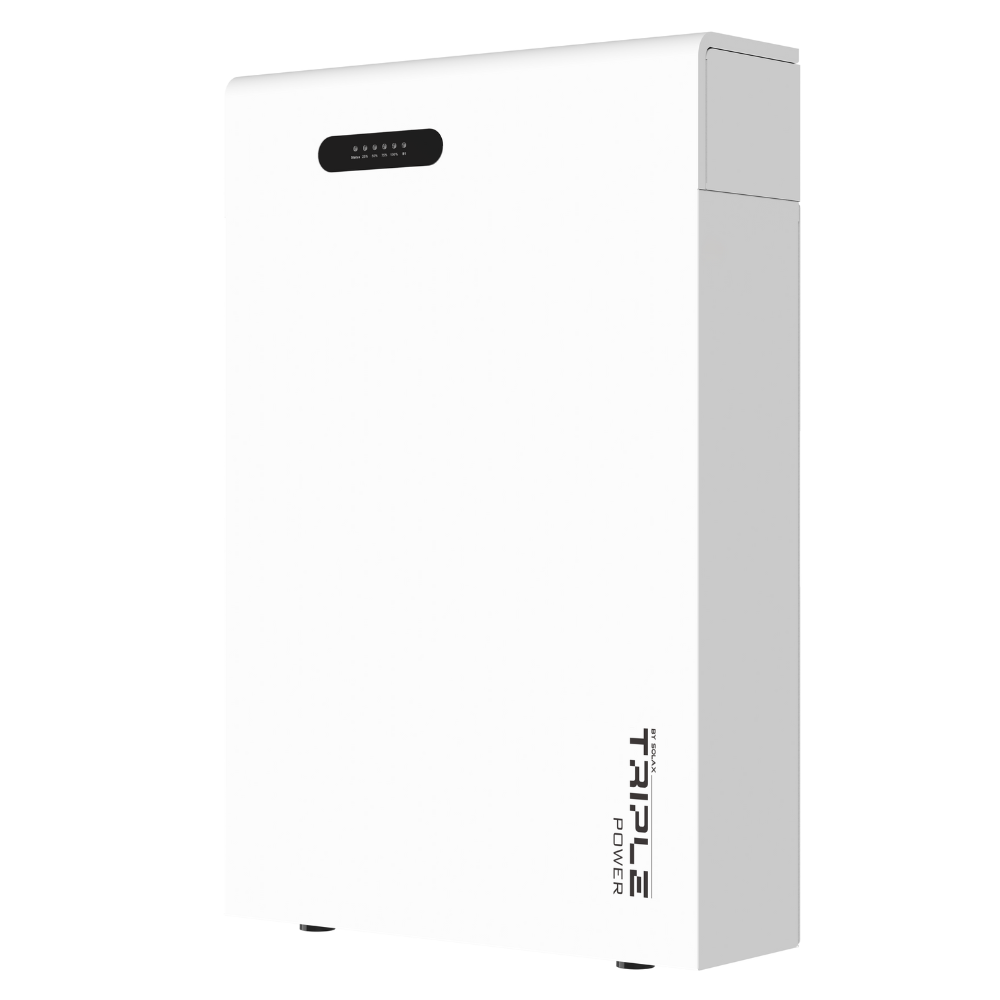

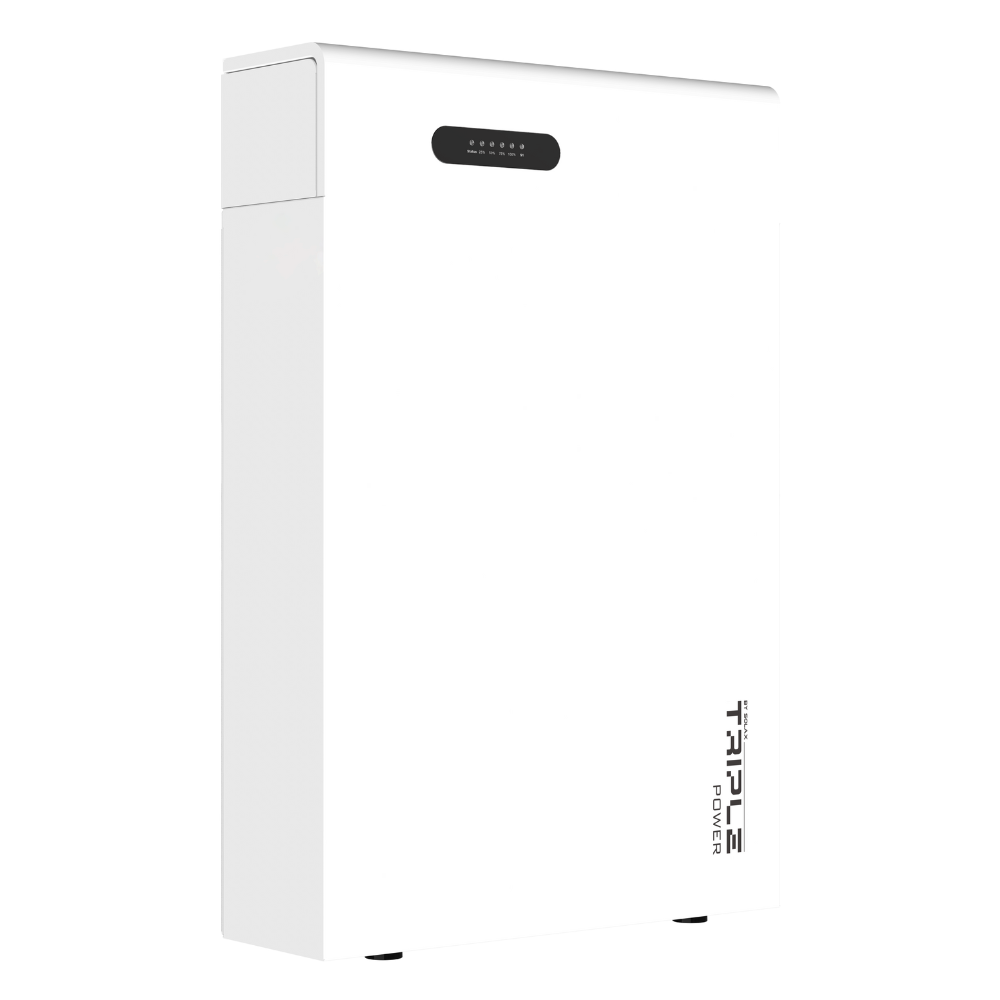

T-BAT H 5.8 V3
-
T-BAT H 5.8(H) V3 / HV11550(H) V3
The T-BAT H 5.8 V3 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.
-
Watch Video
Product Advantage
The T-BAT H 5.8 V3 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP65 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.
High Performance
Max expandable to 6 units with 34.6kWh capacity for single cluster: cover more customer usage scenarios
95% Depth of Discharge (DOD)：Delivers more usable energy over its lifetime
Cycle life> 6000 cycles: Ultra-long lifespan, ensuring consistent performance and long-term reliability
Assured Reliability
Aerosol fire suppression for precise protection
lP66 Ingress protection
No toxic heavy metals or caustic materials
LFP battery cell & high-performance processors
Smart Management
Remote fault diagnosis, upgrade and maintenance: Rapid issue identification
Flexible Adaptability
Floor or wall mounting optional: fits multiple installation scenarios
Product Parameters
-
T-BAT H 5.8 V3/ T-BAT H 5.8H V3-
GENERAL
Nominal voltage 115.2 V Nominal energy 5.8 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 11.5 V3/ T-BAT H 11.5H V3
-
GENERAL
Nominal voltage 230.4 V Nominal energy 11.5 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 17.3 V3/ T-BAT H 17.3H V3
-
GENERAL
Nominal voltage 345.6 V Nominal energy 17.3 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 23.0 V3/ T-BAT H 23.0H V3
-
GENERAL
Nominal voltage 460.8 V Nominal energy 23.0 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 28.8 V3/ T-BAT H 28.8H V3
-
GENERAL
Nominal voltage 576 V Nominal energy 28.8 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 34.6 V3/ T-BAT H 34.6H V3
-
GENERAL
Nominal voltage 691.2 V Nominal energy 34.6 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
