ESS Accessories
TCBOX-70
-
TC BOX 70

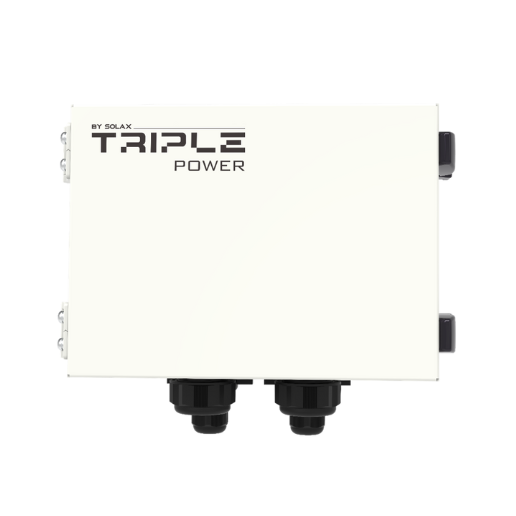

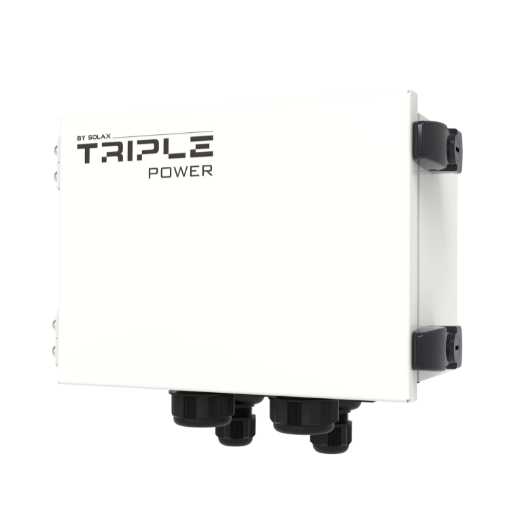

The TCBOX-70 is SolaX's self-developed battery converter box, which can converge multiple battery clusters and connect them to an inverter to realise the expansion of the battery system. lt is easy to operate, easy to wire.
Product Advantage
Its innovative triple-module architecture ensures balanced usage, prolonging battery life through alternating operation. This smart configuration delivers maximum uptime and long-term reliability—making it a powerful solution for scalable energy storage systems.
Reliable Performance
Easy capacity expansion and extend battery lifespan
Scalable, modular design
Flexible Adaptability
Support three-column parallel connection
Support T-BAT-SYS-HV-S2.5, T-BAT-SYS-HV-S3.6, T-BAT-SYS-HVS50E-D, TSYS-HS51* Compatibility with TSYS-HS51 will be upgraded in the future
Product Parameters
-
TCBOX-70-
GENERAL
Dimensions (W x H x D) 325 × 231 × 126 mm Weight 2.1 kg Protection class IP65 Installation type Wall mounted Cooling type Natural -
COMMUNICATION FEATURES
Communication interface RJ45 × 4 Max. parallel tower 3 -
VIRONMENTAL & PROTECTION
Available charge / discharge temperature range -30 ~ 60 °C Storage temperature -40 ~ 80 °C Altitude ＜ 3000 m
-
Data Download
-
Datasheet
-
Quick Installation Guide
-
File nameLanguageFormatSizeLast updateddownload
