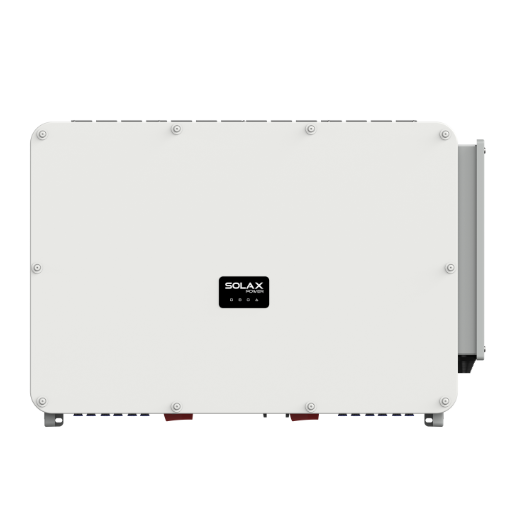

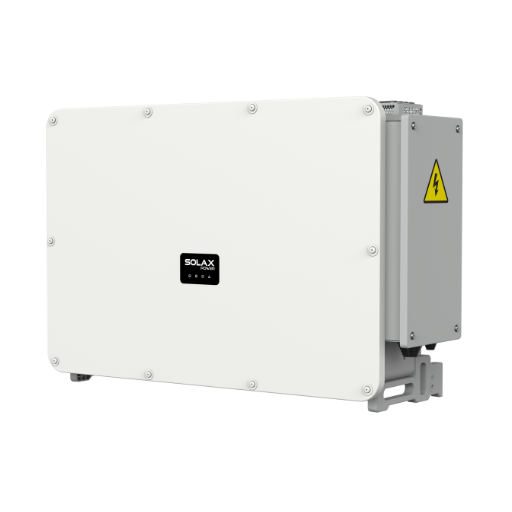

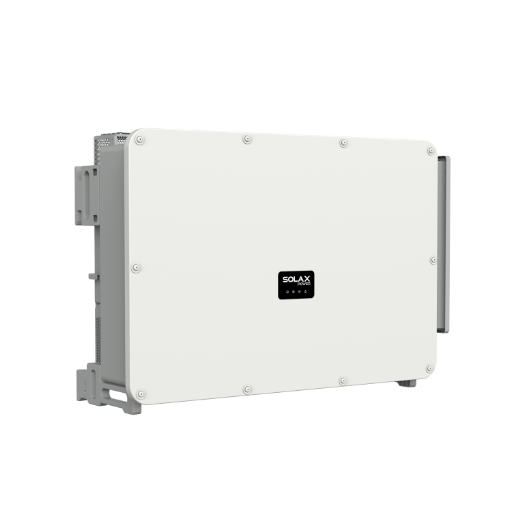

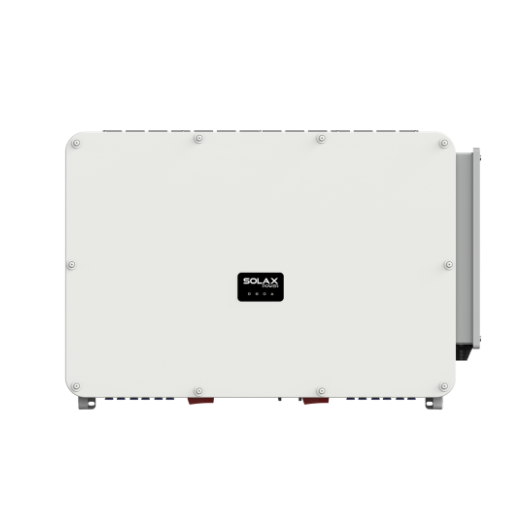

Three Phase Inverter
X3-FORTH PLUS
-
120kW / 125kW / 136kW / 150kW
The X3-FORTH PLUS series (120kW–150kW) is built for durability and flexibility, featuring a fan self-cleaning system for lower maintenance and long-term reliability. With support for high-altitude operation up to 5000m, it adapts easily to complex commercial solar setups.
Product Advantage
The X3-FORTH PLUS delivers up to 99% efficiency with 200% PV oversizing. Supporting 6 MPPTs and up to 65A per MPPT, it enables precise, high-power input management. Operating from -25°C to +60°C, it guarantees stable performance in demanding conditions.
Intelligent Design
Fan self-cleaning function for easier maintenance
Night-time SVG voltage regulation support
Remote settings and upgrades
24-hour monitoring
High Efficiency
150% oversizing,110% overloading range
180~1000V, up to 65A per MPPT
Up to 98.6% efficiency
Flexible Adaptability
6 MPPTs, 4 strings per MPPT for precise power
Reliable up to 5000m altitude
Power line communication (PLC) (optional)
Built-in Anti-PID protection (optional)
Assured Safety
IP66 ingress protection
AFCI support (optional)
AC terminal over temperature detection
Automatic tripping DC switch
Type II SPD on DC side (Optional Type I +II SPD),Type II SPD on AC side
Product Parameters
-
X3-FTH-120K-P-
PV INPUT
Max. recommended PV array power 180.0 kWp
Operation voltage range 180 ~1000 d.c.V
No. of MPP trackers / strings per MPP tracker 6 / 4 Max. input current per MPPT 65 d.c.A
-
AC INPUT &OUTPUT (ON-GRID)
Rated output apparent power 120 kVA
Rated AC voltage 3W /(N)/PE,220 /380 ac.V
3W /(N)/PE,230 /400 a.c.V
3W /(N)/PE,277 /480 a.c.V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1082 × 724 × 373 mm
Net Weight 108.1 kg
-
-
X3-FTH-125K-P
-
PV INPUT
Max. recommended PV array power 187.5 kWp
Operation voltage range 180 ~1000 d.c.V
No. of MPP trackers / strings per MPP tracker 6 / 4 Max. input current per MPPT 65 d.c.A
-
AC INPUT &OUTPUT (ON-GRID)
Rated output apparent power 125 kVA
Rated AC voltage 3W /(N)/PE,220 /380 ac.V
3W /(N)/PE,230 /400 a.c.V
3W /(N)/PE,277 /480 a.c.V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1082 × 724 × 373 mm
Net Weight 108.1 kg
-
-
X3-FTH-136K-P
-
PV INPUT
Max. recommended PV array power 204 kWp
Operation voltage range
180 ~1000 d.c.V
No. of MPP trackers / strings per MPP tracker 6 / 4 Max. input current per MPPT 65 d.c.A
-
AC INPUT &OUTPUT (ON-GRID)
Rated output apparent power 136 kVA
Rated AC voltage 3W /(N)/PE,220 /380 ac.V
3W /(N)/PE,230 /400 a.c.V
3W /(N)/PE,277 /480 a.c.V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1082 × 724 × 373 mm
Net Weight 108.1 kg
-
-
X3-FTH-150K-P
-
PV INPUT
Max. recommended PV array power 225 kWp
Operation voltage range 180 ~1000 d.c.V
No. of MPP trackers / strings per MPP tracker 6 / 4 Max. input current per MPPT 65 d.c.A
-
AC INPUT &OUTPUT (ON-GRID)
Rated output apparent power 150 kVA
Rated AC voltage 3W /(N)/PE,220 /380 ac.V
3W /(N)/PE,230 /400 a.c.V
3W /(N)/PE,277 /480 a.c.V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1082 × 724 × 373 mm
Net Weight 108.1 kg
-
