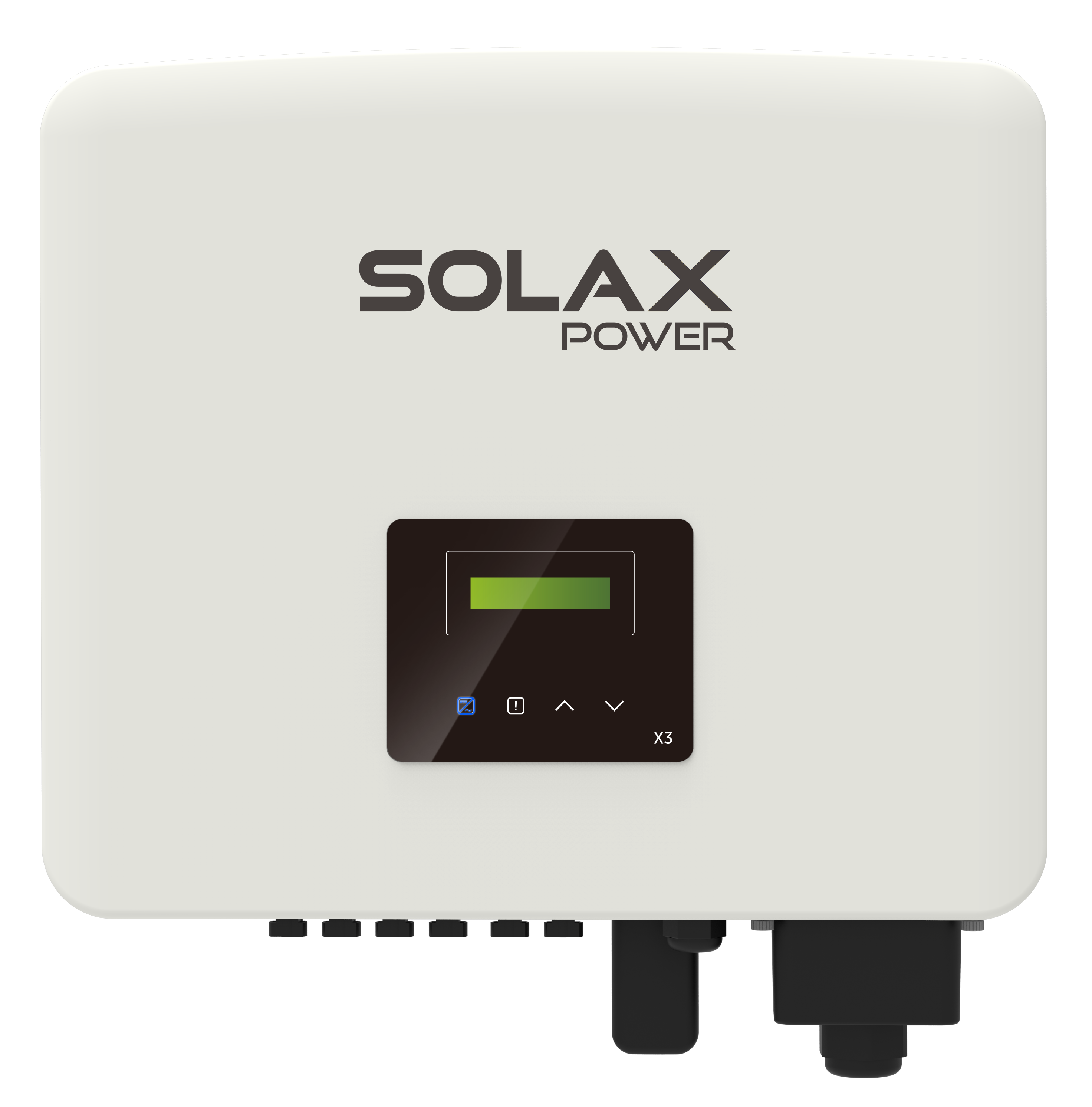

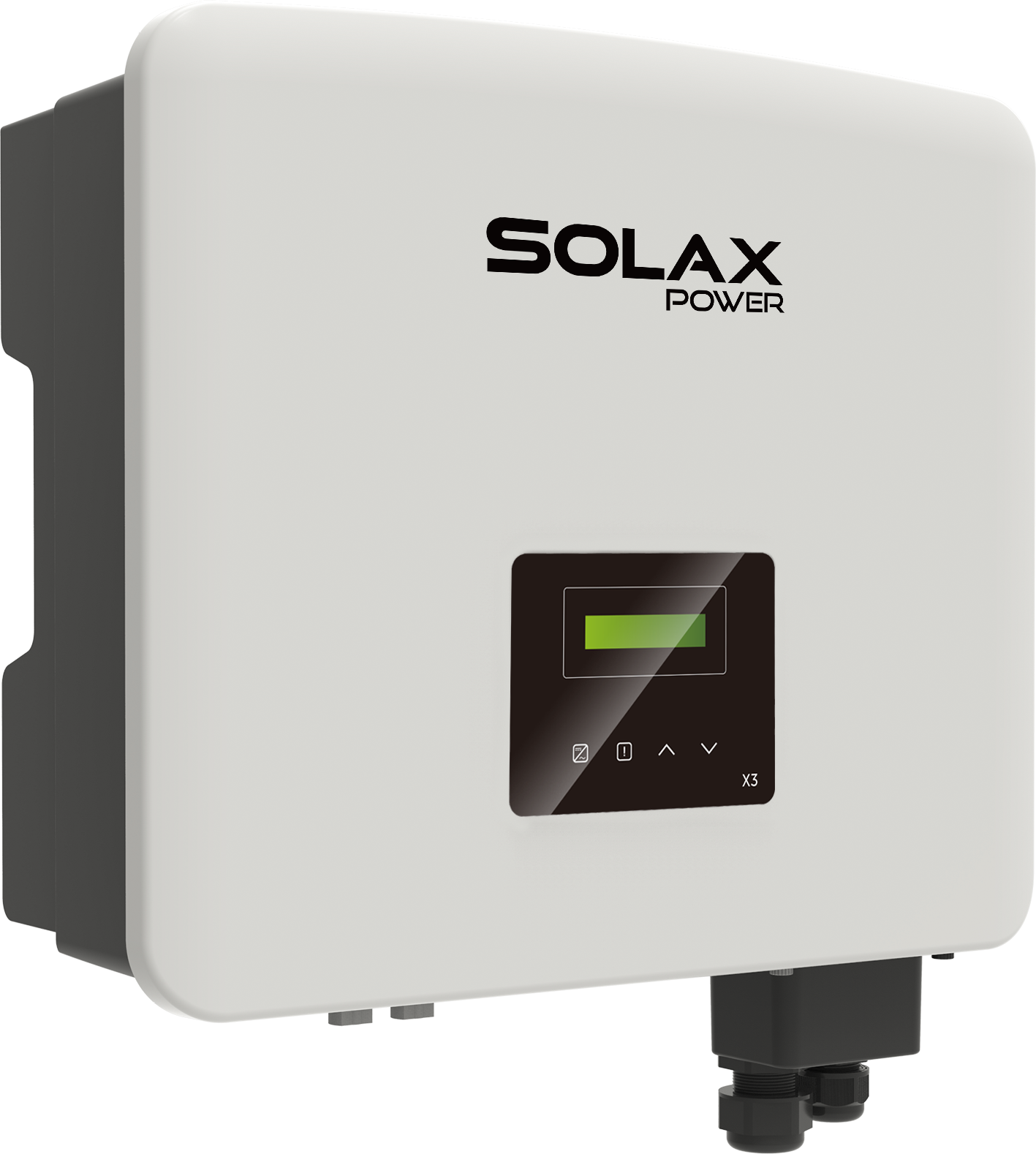

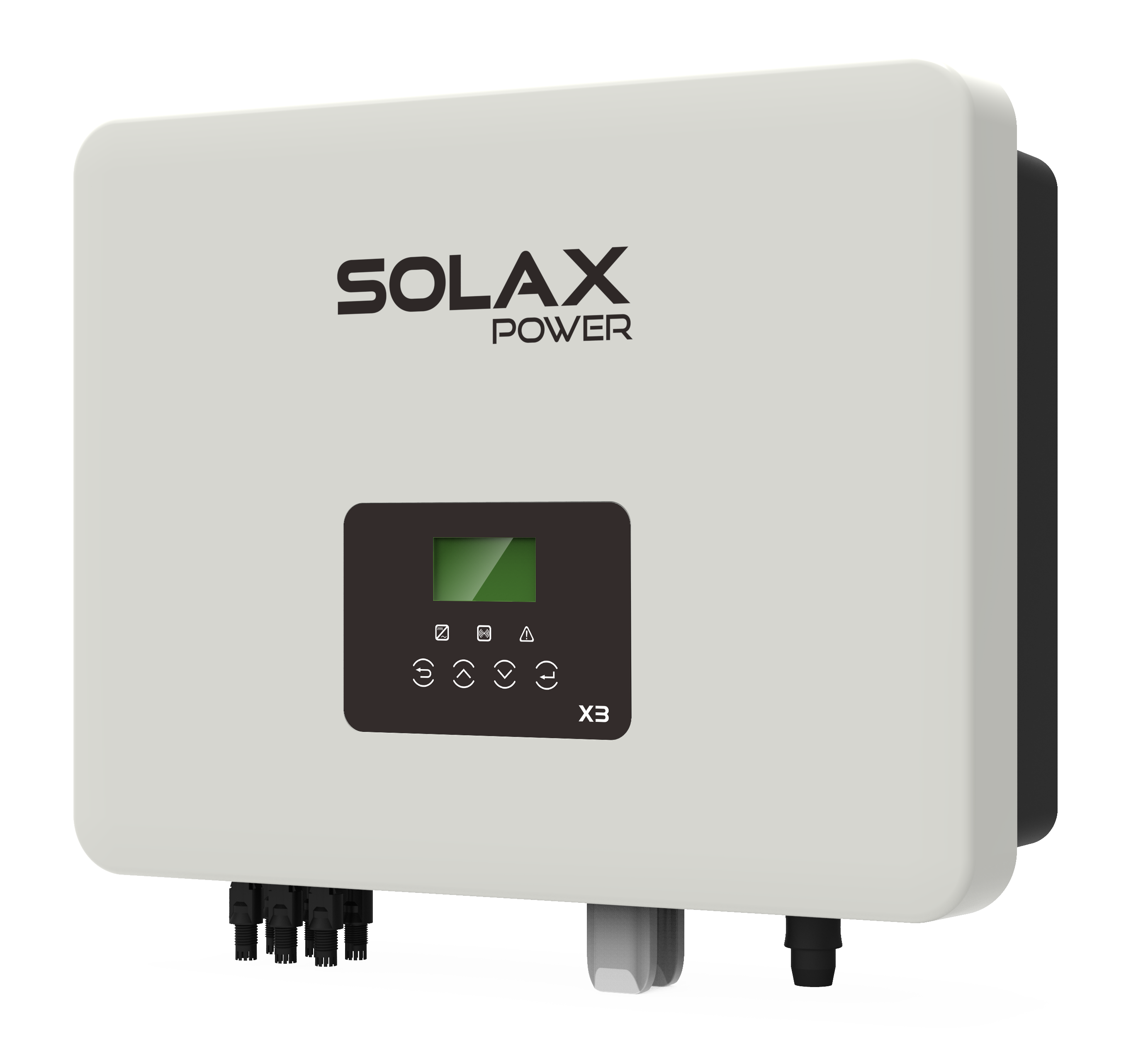

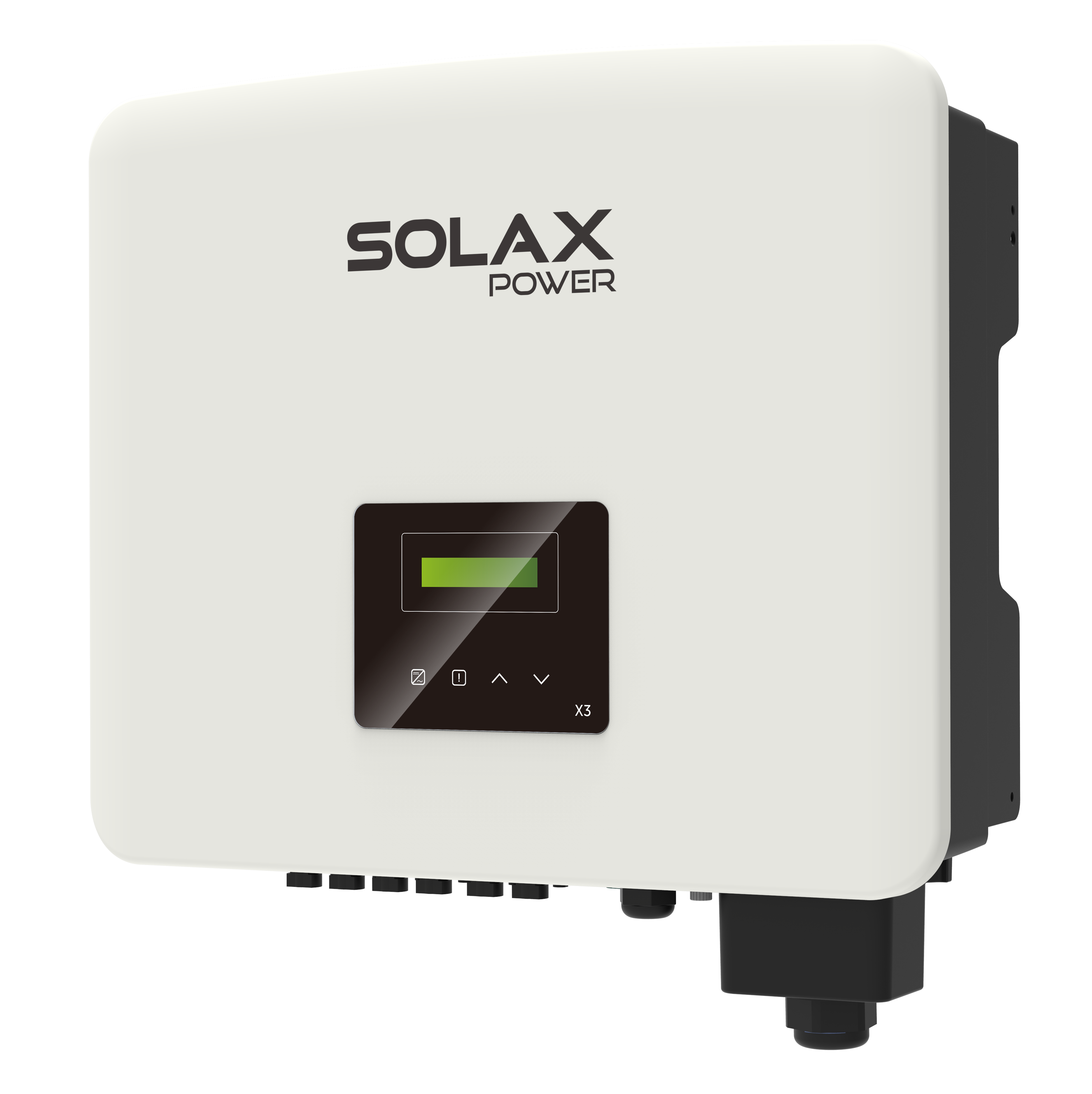

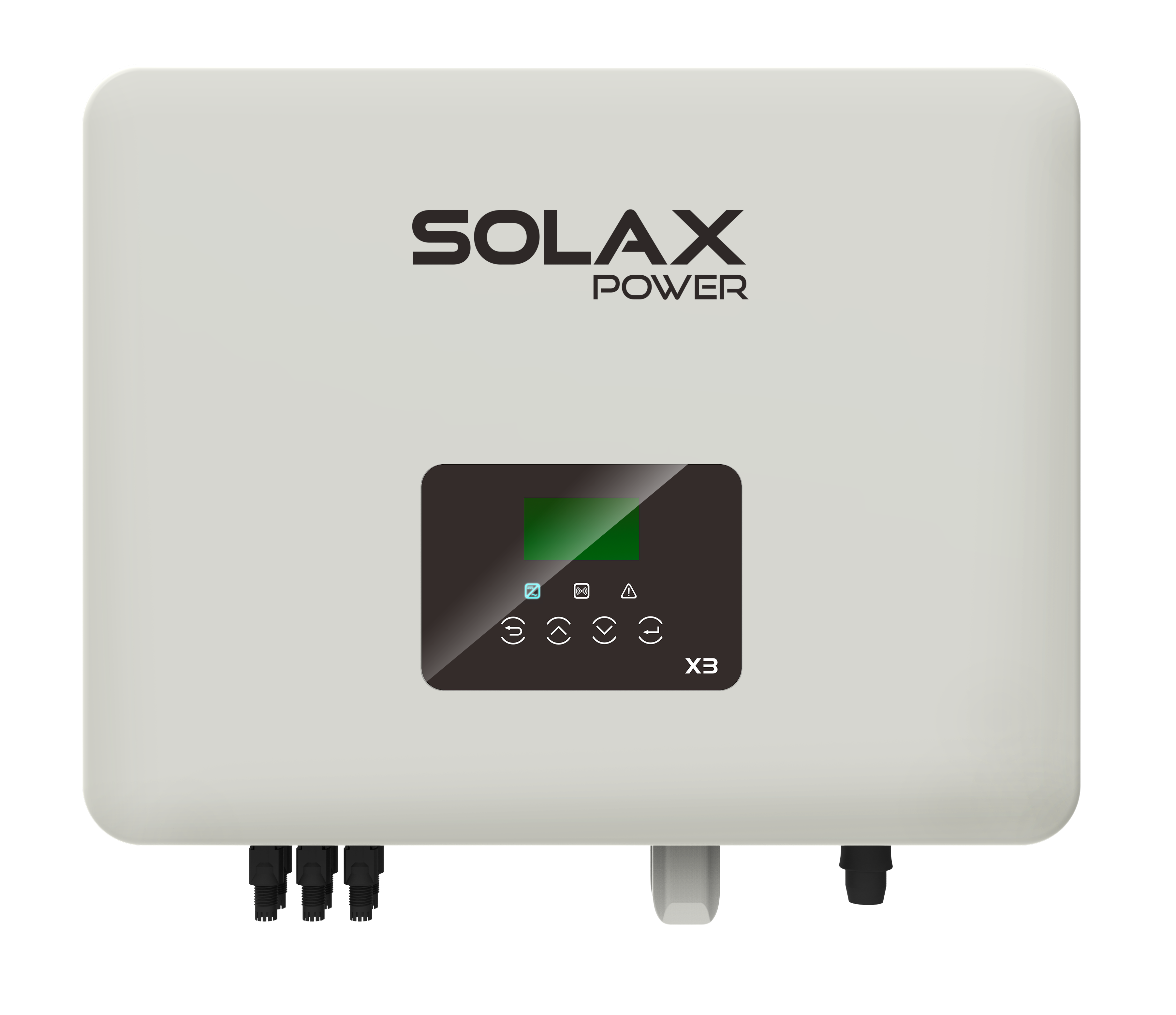

Three Phase Inverter

X3-PRO G2

8kW / 10kW / 12kW / 15kW / 17kW / 20kW / 25kW / 30kW

The X3-PRO G2 inverter (8kW–30kW) offers flexible power options for residential and commercial use. It features built-in export power control and smart loads management for devices like heat pumps and EV chargers. With IP66 protection and high power density, it’s built for reliable performance in any environment.

Data Download

Product Advantage

Delivering up to 98.5% efficiency, the X3-PRO G2 supports 150% DC oversizing and 110% AC overloading, ensuring optimal solar power utilisation. With 32A per MPP tracker, global MPP scan, and a wide MPPT voltage range, it maximizes energy harvest even in low-light or variable conditions.

Assured Safety

Type II SPD on AC & DC side
IP66 ingress protection
AFCI support (optional)

Flexible Adaptability

Built-in export power control function
Ultra-high power density

Intelligent Design

24h monitoring (WiFi / LAN / 4G)
Smart loads management (e.g. heat pump, smart EV charger)

High Efficiency

Up to 98.5% efficiency
32A per MPP tracker
150% DC oversizing & 110% AC overloading output
Built-in global MPP scan
Low start up voltage & ultra-wide MPPT range

Product Parameters

X3-PRO-8K-G2
X3-PRO-10K-G2
X3-PRO-12K-G2
X3-PRO-15K-G2
X3-PRO-17K-G2
X3-PRO-20K-G2
X3-PRO-25K-G2
X3-PRO-30K-G2

X3-PRO-8K-G2
- PV INPUT

  Max. recommended PV array power
  12.0 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  8kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-10K-G2
- PV INPUT

  Max. recommended PV array power
  15.0 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  10kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-12K-G2
- PV INPUT

  Max. recommended PV array power
  18.0 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  12kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-15K-G2
- PV INPUT

  Max. recommended PV array power
  22.5 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  15kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-17K-G2
- PV INPUT

  Max. recommended PV array power
  25.5 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  17kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-20K-G2
- PV INPUT

  Max. recommended PV array power
  30.0 kWp
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  20kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-25K-G2
- PV INPUT

  Max. recommended PV array power
  37.5 kWp
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  25kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
X3-PRO-30K-G2
- PV INPUT

  Max. recommended PV array power
  45.0 kWp
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  30kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
