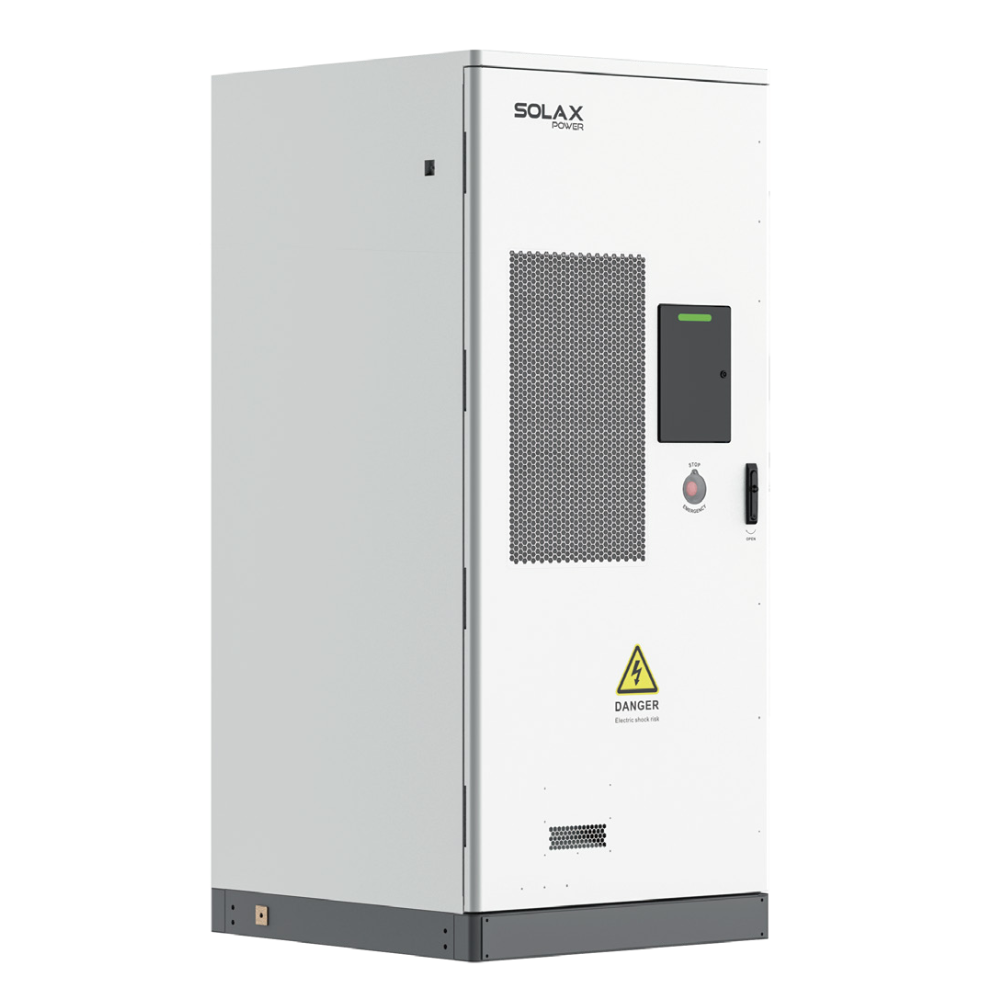

AELIO-B100-AU
AELIO-B100-AU All-in-One C&I Energy Storage System: 100 kWh capacity, 50.2 kW power, IP55 air-cooled design, 6000 cycles, 10-year warranty.
Product Advantage
LFP 280Ah cells, 358.4V nominal, 100kWh total / 90kWh usable energy, 50.2kW max power, 140A charge/discharge current, air-cooled IP55 design, 6000 cycles at 90% DOD, -20°C to 53°C discharge range, 10-year warranty.
Integrated Structural Design
All-in-one cabinet design with rack-level packaging for easy installation
IP55 protection rating suitable for various industrial and commercial environments
High-Performance Battery Configuration
Utilizes lithium iron phosphate (LFP) 280Ah cells for safety and longevity
7-battery module configuration with integrated BMS for optimal performance
Outstanding Performance Metrics
100 kWh total energy storage capacity with 90 kWh usable energy (90% DOD)
Maximum charge/discharge power of 50.2 kW with 140A nominal current
High roundtrip efficiency up to 95% under standard conditions
Product Parameters
-
AELIO-B100-AU-
CORE SPECIFICATIONS
Cell Type LiFePO₄ (LFP) 280Ah Configuration TBMS-R15*1 + TB-HR140 *7
-
CAPACITY & PERFORMANCE
Total Storage Energy 100 kWh Usable Energy (90% DOD) 90 kWh
Max Charge/Discharge Power 50.2 kW Cycle Life (90% DOD) 6000 Cycles -
GENERAL
Dimension (W × H × D) 1020 × 2300 × 1140 mm Weight 1500 kg
-
Data Download
-
Datasheet
-
User Manual
-
Maintenance Guide
-
Declaration
-
Safety Datasheet
-
